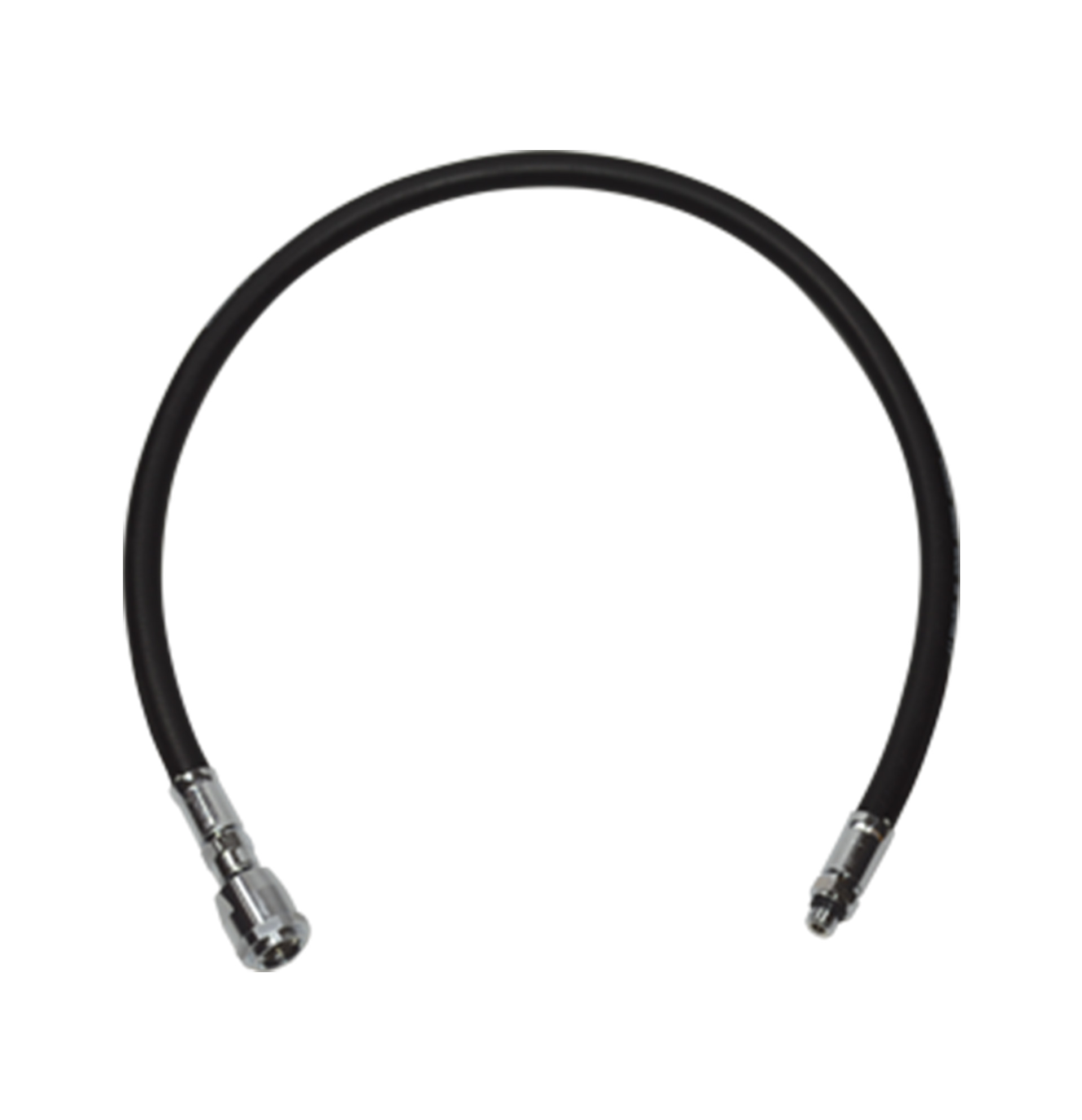

Apollo Low Pressure Hose With Ball Joint

FEATURES

• Technology in pursuit comfort

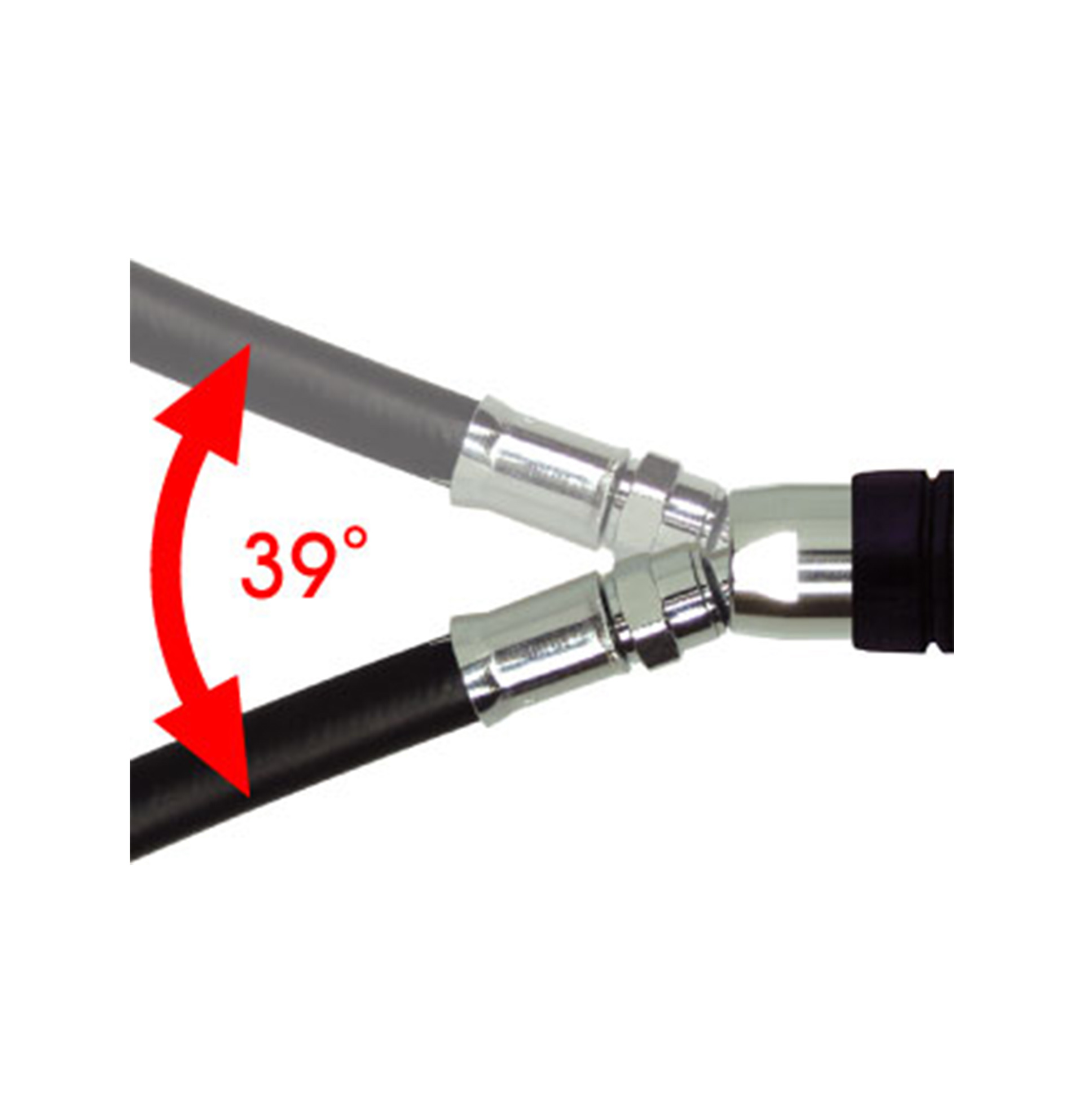

• Adoption of fluorine resin for the swivel ball insulator bracket has achieved extremely smooth movement even when the air-pressure is applied.This structure enables to replace only the hose section when the hose becomes deteriorated.Further more,It has achieved a wide swing angle of 39 degree by the adoption of high-strength material with the optimized design.

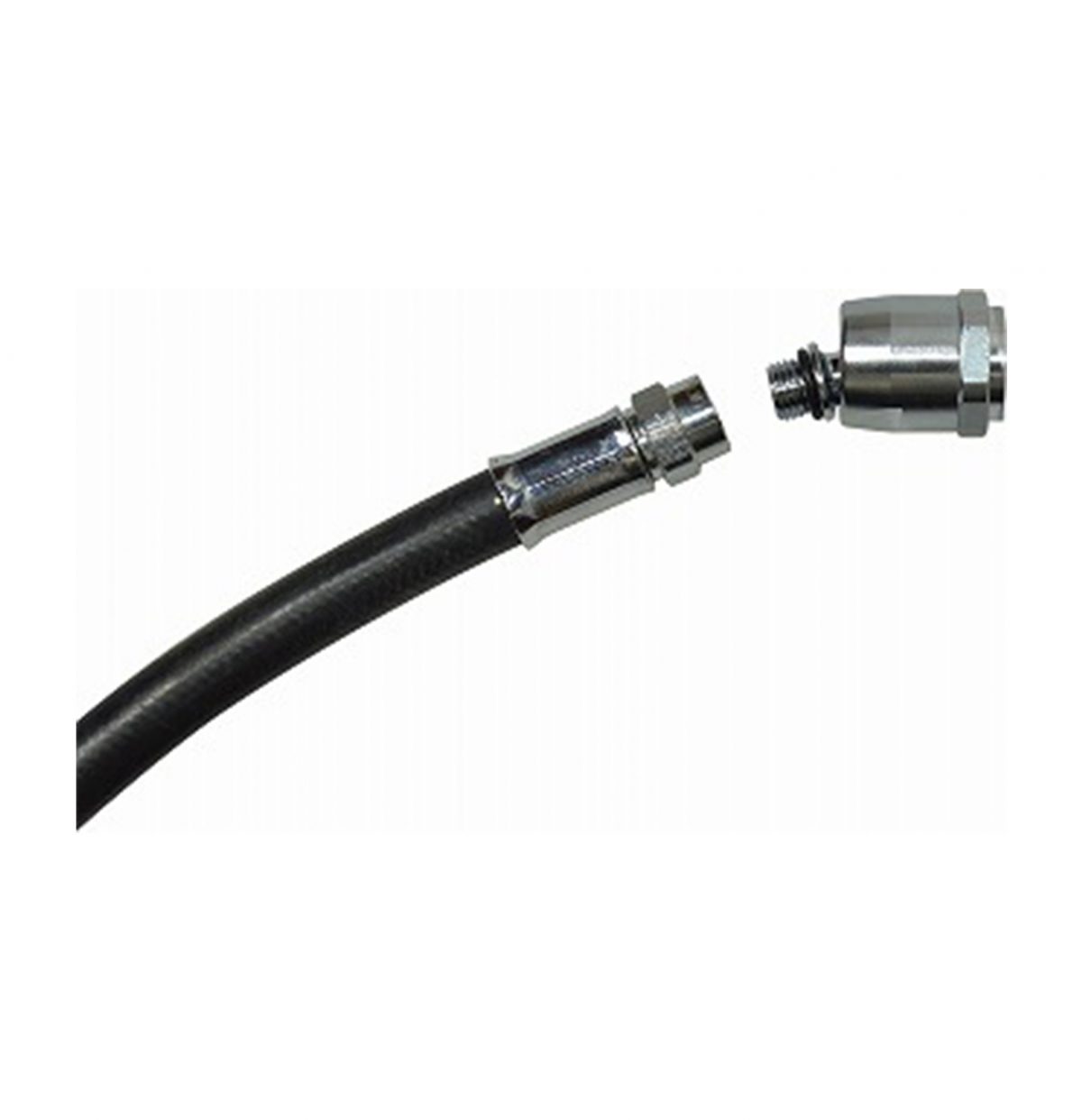

• In addition, it adopts a new structure that the hose section and the ball joint portion can be separated by 3/8 inch screw.

The shape of hose mounting screw of the 2nd stage that can be used.

• The hose mounting screw of the 2nd stage is limited to those type on which an O-ring can be attached at the root portion as shown the picture above.
• Hose mounting is possible with the mounting screws.
• Please note that hose mounting is not possible to mounting screws shown in picture above as an O-ring can not be attached at the root portion of the screw.

SPECIFICATION

• Hose length: 70cm
• Hose color: Black
