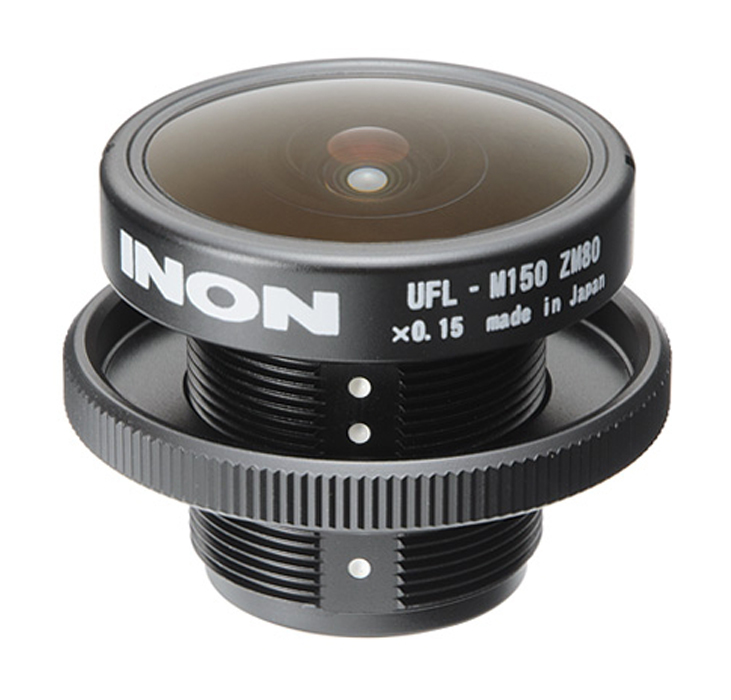

INON UFL-M150 ZM80 Underwater Micro Fisheye Lens

Compact fisheye lens to shoot through eyes of small marine life, so-called “insect-eye lens” imaging.

Description

Description

FEATURES

  • The lens is designed to use at approx. 80mm zoom position (35mm film equivalent) not as like standard wide conversion lens.
  • Underwater view angle is 150°. The subject side lens is compact diameter 32.9mm and minimum focal length is 0cm to capture a tiny subject in entire image together with background.
  • The UFL-M150 ZM80 is an afocal system conversion lens which does not affect brightness of combined master lens and enables you to use benefit of camera’s AF (auto focus).
  • You can take full advantage of INON “S-TTL” Auto exposure of INON Z-330, D-200, S-2000 to benefit appropriate exposure images simply by pressing shutter release button.
  • The lens barrel has threaded wall to adjust lens position back and forth to accommodate with different master lenses among many compact digital cameras (*5).
  • The UFL-M150 ZM80 is attached on compatible camera housing via combination of “Mount Base” which is exclusively designed for each housing and appropriate “Mount Converter”.

(*1) Optional “M27-M67 Mount Converter for UFL-M150 ZM80” is necessary.
(*2) Optional “M27-AD Mount Converter for UFL-M150 ZM80” is necessary.
(*3) Optional “M27-LD Mount Converter for UFL-M150 ZM80″is necessary.
(*4) This lens is designed for underwater use only. Using on land will not form an image.
(*5) Not usable for a compact digital camera carrying large master lens or super zoom function, or an interchangeable lens for a SLR camera system.

SPECIFICATIONS

  • Model: UFL-M150 ZM80
  • Outer diameter / Length (*2): 39.7mm / 36.8mm (1.6in / 1.4in)
  • Weight:

    • Air: 66g (2.3oz)
    • Underwater: approx. 41g (1.4oz)
  • Lens construction: 5 elements in 4 groups
  • Focal length (air / underwater): – / infinity (afocal system)
  • Magnification: 0.15
  • Maximum incident view angle (air / underwater) (*3): – / 150°
  • Body material / Finishing:  Corrosion-resistant aluminum alloy / Rigid black almite
  • Glass material / Finishing: Optical glass / Both side anti-reflection coating
  • Mount thread diameter / pitch: M27 / 1.0
  • Depth Rating: 60m / 197ft

Actual shooting distance (from lens surface) and camera’s focus setting:

Shooting distance
[from front edge of the lens] (*5)
Focus position (*4)
0mm 309.8mm
2.9mm 400mm
6.1mm 500mm
9.3mm 600mm
12.5mm 700mm
15.7mm 800mm
19mm 900mm
22.2mm 1000mm

(*1) Specification is subject to change without prior notice.
(*2) Excluding “Lock Ring”
(*3) Actual view angle (actual field of view) varies depending on zoom setting of combined camera.
(*4) Focus range / position on land (=visual distance underwater). Multiply by 1.33 for measured distance underwater.
(*5) Measured distance underwater. Divide by 1.33 for visual distance underwater.

*Please note that the product’s colour/design may differ slightly from the images provided due to lighting factors and varying device screen settings.
